History
This chapter gives an overview of diesel locomotives used by state railways in Myanmar/Burma. For a complete list, please refer to sub menu item Statistics. Most of the data information was taken from the invaluable books about Indian locomotives written by Hugh Hughes or retained by me during visits to Insein workshop.
1945 - 1970
The first non-steam locomotives used state railways track were B-coupled petroleum locomotives, which were brought into the country by the US Army Transportation Corps (USATC) during the end of the war (class P).
Large parts of the rolling stock was destroyed in WW II and got first replaced by new steam locomotives. In 1958 the first six diesel engines of type Bo'Bo'Bo'-de were ordered at Alsthom (class DF.1201). Six years later 28 diesel-hydraulic engines of type B'B'-dh were delivered by Krupp to Burma (class DD.1501) along with 27 diesel-electric engines of type Bo'Bo'Bo'-de from Alsthom (class DF.1207). The latter became the standard diesel class on Burmese tracks throughout the following decades. Japanese manufacturers (Hitachi, Kisha Seizo Kaisha) delivered 15 smaller diesel hydraulic engines, mainly used for shunting, in 1965 (classes DC.501 and DD.501). Krupp delivered another six diesel-hydraulic engines in 1969 (class DD.901) while Alsthom delivered another 20 engines of class DF.1207. Thus, by 1970 the Burma Railways had already more than 100 diesel locomotives in services.
Class | Type | Quantity | Makers | Remark |
P | B-pm | 18 | Plymouth (12), Brookville (6) | ex USATC |
DC.501 | C-dh | 10 | Kisha Seizo Kaisha | |
DD.501 | B'B'-dh | 5 | Hitachi | |
DD.901 | B'B'-dh | 6 | Krupp | |
DD.1501 | B'B'-dh | 28 | Krupp | |
DF.1201 | Bo'Bo'Bo'-de | 6 | Alsthom | |
DF.1207 | Bo'Bo'Bo'-de | 47 | Alsthom | |
| | 120 | | |
Table 1: Diesel locomotives in 1970 (not considering engines out of service)
1971 - 1979
Throughout the 1970s the influx of diesel engines continued. Alsthom delivered a stronger version of class DF.1207 that was labelled DF1601. Between 1971 and 1978, 45 new engines of that class were put in service. In addition, Alsthom delivered 29 four-axled diesel-electric engines (class DD.914) in 1972/77. Japanese manufacturer Kisha Seizo Kaisha (Kisha Seizo Kaisha) delivered 23 four-axled diesel-hydraulic engines (classes DD.907, DD.1201 and DD.1529) in 1971/72 while Kawasaki delivered another five diesel-hydraulic shunting locomotives (class DD.506) in 1978. Krupp delivered a third batch of 16 diesel-hydraulic engines (class DD.943) in 1979. Thus, by 1980 the Burma Railways had already purchased more than 200 diesel locomotives.
Class | Type | Quantity | Makers | Remark |
P | B-pm | 18 | Plymouth (12), Brookeville (6) | ex USATC |
DC.501 | C-dh | 10 | Kisha Seizo Kaisha | |
DD.501 | B’B‘-dh | 5 | Hitachi | |
DD.506 | B‘B‘-dh | 5 | Kawasaki | |
DD.901 | B‘B‘-dh | 6 | Krupp | |
DD.907 | B‘B‘-dh | 7 | Kisha Seizo Kaisha | |
DD.914 | Bo‘Bo‘-de | 29 | Alsthom | |
DD.943 | B‘B‘-dh | 16 | Krupp | |
DD.1201 | B‘B‘-dh | 10 | Kisha Seizo Kaisha | |
DD.1501 | B'B'-dh | 28 | Krupp | |
DD.1529 | B'B'-dh | 6 | Kisha Seizo Kaisha | |
DF.1201 | Bo'Bo'Bo'-de | 6 | Alsthom | |
DF.1207 | Bo'Bo'Bo'-de | 47 | Alsthom | |
DF.1601 | Bo'Bo'Bo'-de | 45 | Alsthom | |
| | 238 | | |
Table 2: Diesel locomotives in 1980 (not considering engines out of service)
1980 - 1989
The two most important manufacturers for diesel engines continued the delivery of diesel engines. In 1984, Alsthom delivered another 8 class DF.1207 locomotives as well as 15 enhanced and stronger engines which were delivered in 1987 and got classified as DF.2001. Krupp delivered another two batches of 19 diesel-hydraulic engines in 1987 (class DD.959 and DD.1211). Kawasaki delivered another 12 shunting engines (DD.511) in 1986/89; some of the engines were assembled in Insein workshop. Insein workshop also started to reconstruct class DF.1207 locomotives made out of old engines, which were taken out of service. A two-axle small diesel-hydraulic delivered by Korean manufacturer Daewoo remained unique.
Class | Type | Quantity | Makers | Remark |
P | B-pm | 18 | Plymouth (12), Brookeville (6) | ex USATC |
DB.301 | B-dh | 1 | Daewoo | |
DC.501 | C-dh | 10 | Kisha Seizo Kaisha | |
DD.501 | B'B'-dh | 5 | Hitachi | |
DD.506 | B'B'-dh | 5 | Kawasaki | |
DD.511 | B’B‘-dh | 12 | Kawasaki | |
DD.901 | B'B'-dh | 6 | Krupp | |
DD.907 | B'B'-dh | 7 | Kisha Seizo Kaisha | |
DD.914 | Bo'Bo'-de | 29 | Alsthom | |
DD.943 | B'B'-dh | 16 | Krupp | |
DD.959 | B‘B‘-dh | 11 | Krupp | |
DD.1201 | B'B'-dh | 10 | Kisha Seizo Kaisha | |
DD.1211 | B‘B‘-dh | 8 | Krupp | |
DD.1501 | B'B'-dh | 28 | Krupp | |
DD.1529 | B'B'-dh | 6 | Kisha Seizo Kaisha | |
DF.1201 | Bo'Bo'Bo'-de | 6 | Alsthom | |
DF.1207 | Bo'Bo'Bo'-de | 56 | Alsthom (55), Insein workshop (1) | |
DF.1601 | Bo‘Bo‘Bo‘-de | 45 | Alsthom | |
DF.2001 | Bo‘Bo‘Bo‘-de | 15 | Alsthom | |
| | 294 | | |
Table 3: Diesel locomotives in 1990 (not considering engines out of service)
1990 - Today
On the one hand, growing economic problems and sanctions made it more and more difficult to order new diesel locomotive from western manufacturers. On the other hand, the growing railway network as well as the ageing fleet that still consisted of numerous steam locomotives required new diesel engines. There were several ways how the Myanma Railways tried to solve this problem. First copy versions of class DF.2001 and DF.1207 engines were ordered at Chinese manufacturers Dalian and Sifang starting from 1993. In addition Insein workshop continued to reconstruct locomotives made out of locomotives which were taken out of service or used diesel engines purchased in Japan. The re-gauging of metre railways in India set free some YDM-4 diesel engines, which offered a good bargain, additional used YDM-4 engines were bought from Tanzania and finally also some new YDM-4 found their way to Myanmar. With the reduction of traffic and closure of passenger services on the Chinese part of the metre gauge Yunnan railway, 35 used DFH21 were sold to the Myanma Railways along with passenger coaches. In 2019, some efforts were made to overhaul some of the old Krupp diesel engines left in service.
Class | Type | Quantity | Makers | Remark |
P | B-pm | 18 | Plymouth (12), Brookeville (6) | ex USATC |
DB.210 | B-dh | 3 | ? | |
DB.301 | B-dh | 5 | Insein workshop (4), Daewoo (1) | |
DC.501 | C-dh | 10 | Kisha Seizo Kaisha | |
DD.501 | B‘B‘-dh | 5 | Hitachi | |
DD.506 | B‘B‘-dh | 5 | Kawasaki | |
DD.511 | B’B‘-dh | 12 | Kawasaki | |
DD.901 | B‘B‘-dh | 6 | Krupp | |
DD.907 | B‘B‘-dh | 7 | Kisha Seizo Kaisha | |
DD.914 | Bo‘Bo‘-de | 29 | Alsthom | |
DD.943 | B‘B‘-dh | 16 | Krupp | |
DD.959 | B’B‘-dh | 11 | Krupp | |

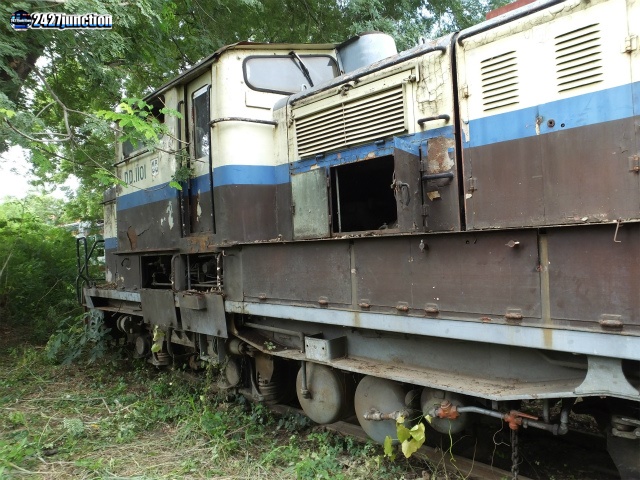

DD.1101 | B‘2‘-dh | 4 | Insein workshop | resulted out of cutting class D2D.2201 |
DD.1111 | B'B'-dh | 35 | Sifang | ex China Railways |
DD.1201 | B'B'-dh | 10 | Kisha Seizo Kaisha | |
DD.1211 | B‘B‘-dh | 8 | Krupp | |
DD.1501 | B'B'-dh | 28 | Krupp | |
DD.1529 | B'B'-dh | 6 | Kisha Seizo Kaisha | |
DF.1201 | Bo'Bo'Bo'-de | 6 | Alsthom | |
| | 497 | | |
Table 4: Current list of diesel locomotives (not considering engines out of service)
Classes
The first 18 petroleum locomotives received a classification as “P” based on the classifications for steam locomotives. With the purchase of the first six diesel-electric engines from Alsthom, a new classification based on axles and traction type was used. Thus the new engines of type Bo'Bo'Bo'-de received the classification BBB-DE. This classification was changed again with the purchase of further diesel locomotives. The new classification that is used until today is based on a combination of two characters indicating the number of driving axles and one or two numbers roughly indicating the power in 100hp and the running number of the first locomotive in this class. The first character is always “D” for diesel (no distinction between diesel-electric and diesel-hydraulic is made), the second character indicates the number of driving axles (B=two driving axles, C=three driving axles…).
There are separate batches of running numbers for each category of driving axles and power. Example: DF.2037 classifies a diesel loco with six driving axles, the first locomotive of this class having running number 37 (the 37th locomotive with six driving axles and a power of approx. 2,000hp). The locomotives receive a numbering based on the classification: DF.2037, DF.2038, … .
The following paragraphs describe each class with full details. They are not ordered in alphabetical order, but according to the first appearance on railway tracks in Burma/Myanmar.
Class P (B-pm)
During WW II, the US Army Transportation Corps (USATC) brought small two-axled petroleum locomotives to Myanmar from which 18 remained in the country and got classified as class P by Burma Railways. The first six locomotives produced by Brookville were brought to Myitkyina by air in April 1945. Nineteen more produced by Plymouth were flown from the US to Rangoon via Calcutta in May 1945; seven of them never seemed to be uncrated in Rangoon, six out of the seven uncrated locomotives were sent to Federated Malay State Railways in September 1945. It is unknown how long the engines remained in service.
Quantity | Nos. | Put in service | Maker | Makers' Nos. | Makers' Date | Remark |
6 | 493 - 498 | 1945 | Brookville | 3029, 3031, 3035, 3030, 3028, 3034 | 1944 | ex. USATC 8289, 8291, 8295, 8290, 8288, 8294 Flown to Myitkyina in April 1945 by air |
12 | 499 – 510 | 1945 | Plymouth | 5041, 5042, 5044, 5046, 5049, 5053, 5056-5058, 5060 - 5062 | 1945 | ex USATC 2384, 2385, 2387, 2392, 2396, 2399, 2990, 2291, 2293 - 2395 all flown from USA to Rangoon via Calcutta |
7 | | 1945 | Plymouth | 5040, 5045, 5047, 5050, 5051, 5054, 5052 | 1945 | ex USATC 2383, 2388, 2399, 2393, 2394, 2397 all flown from USA to Rangoon via Calcutta in May 1945 first six uncrated at Insein workshop; to Federated Malay State Railways in 9/1945; usage of 5052 unknown |
Table 5: List of all class P engines.
http://www.malayarailway.com/2009/11/plymouth-shunter.html#axzz66Tzb4agO
Figure 1: KJR 067 of Malay State Railways (ex. USATC 2388, Plymouth 5045, 1945), sent to Malaysia in 1945 uncrated from Rangoon.
Class DF.1201 (Bo'Bo'Bo'-de)
The first diesel engines were delivered by Alsthom in 1958, they were initially classified as BBB-DE, later they received the classification DF.1201. With six driving axles distributed among three bogies, they had perfect characteristics for the Burmese railway network: low axle weight, ability to negotiate sharp curves, high power. Thus, the class became the prototype for nearly all further diesel-electric engines in Burma/Myanmar. Alsthom also delivered similar types of locomotives to neighbouring countries like Thailand and Cambodia. In 2014, all six locomotives were still in service.
Quantity | Nos. | Put in service | Maker | Makers' Nos. | Makers' Date | Engine | Remark |
6 | 1201 – 1206 | 1958 | Alsthom | ? | 1957 | MGO 16VHSR | initial numbered BBB-DE001 - BBB-DE006 |
Table 6: List of all class DF.1201 engines.
Figure 2: DF.1205 is pulling a mixed train into Yangon station (24th of November 2011)
Class DF.1207 (Bo'Bo'Bo'-de)
The class DF.1201 proved to be successful, thus in 1964 the Burma Railways ordered 27 engines of a slightly adapted version, which was classified as DF.1207. It was again a type Bo'Bo'Bo'-de, the driver cabin was put to the front and the layout was changed to two driver cabins. Further 20 engines followed between 1968 and 1970. A third batch of eight engines were delivered in parts in 1984/85 and were assembled in Insein workshop. In 1995, Chinese manufacturer Sifang delivered four more engines. In 1986, reconstruction of class DF.1207 engines started in Insein workshop using other DF.1207 locos, which were taken out of service or were damaged in accidents. This continues until today, so far ten reconstructions are known to me. With an overall of 69 engines, the class DF.1207 is one of the largest diesel locomotive classes. While nearly all engines were still listed as in service in 2010, around half of the engines were written off until 2014. Forty-five out of the 69 locomotives were repowered during their lifecycle.
Quantity | Nos. | Put in service | Maker | Makers' Nos. | Makers' Date | Engine | Remark |
27 | 1207 – 1233 | 1964 | Alsthom | ? | 1964 | SACM MGO 12VBSHR | 19 still in service in 2014 |
1 | 1234 | 1968 | Alsthom | ? | 1968 | SACM MGO 12VBSHR | financed by "Paper Industry & Chemical Industries Board" |
4 | 1235 - 1238 | 1969 | Alsthom | ? | 1968 | SACM MGO 12VBSHR | |
15 | 1239 – 1253 | 1970 | Alsthom | ? | 1969 | SACM MGO 12VBSHR | |
5 | 1254 – 1258 | 1984 | Alsthom | ? | 1984 | SACM MGO 12VBSHR | assembled in Insein workshop |
3 | 1259 – 1261 | 1985 | Alsthom | ? | 1985 | SACM MGO 12VBSHR | assembled in Insein workshop |
1 | 1262 | 1986 | Insein workshop | | 1986 | SACM MGO 12VBSHR | reconstructed from DF1218 and DF1231 |
1 | 1263 | 1993 | Insein workshop | | 1993 | SACM MGO 12VBSHR | reconstructed from div. DF1207 locos |
4 | 1264 – 1267 | 1995 | Sifang | ? | 1995 | MTU 12V396TC13 | |
1 | 1200.01 | 2007 | Insein workshop | | 2007 | ? | reconstructed from div. DF1207 locos |
1 | 1200.02 | 2008 | Insein workshop | | 2008 | SAC MGO | reconstructed from div. DF1207 locos |
1 | 1200.03 | 2009 | Insein workshop | | 2009 | Caterpillar 3508B | reconstructed from div. DF1207 locos |
5 | 1200.04 - 1200.08 | 2010 | Insein workshop | | 2010 | Caterpillar 3508B | reconstructed from div. DF1207 locos |
Table 7: List of all class DF.1207 engines.
Figure 3: DF.1213 from first batch delivered in 1964 by Alsthom pulls a circle line out of Yangon station (24th of November 2011)
Figure 4: DF.1217 from first batch delivered in 1964 by Alsthom near Yangon station (November 2009)
Figure 5: DF.1220 from first batch delivered in 1964 by Alsthom pulls a circle line train out of Yangon station (24th of November 2011)
Figure 6: DF.1222 from first batch delivered in 1964 by Alsthom at Bago station (3rd of December 2011)
Figure 7: DF.1246 from second batch delivered in 1968/70 by Alsthom pulls a train into Yangon station (21st of November 2009)
Figure 8: DF.1246 pulls a train into Yangon station (4th of December 2009)
Figure 9: DF.1248 from second batch delivered in 1968/70 by Alsthom at Bogoyke Aung San Market station (24th of November 2011)
Figure 10: DF.1251 from second batch delivered in 1968/70 by Alsthom pulls a circle line train out of Yangon station (4th of November 2009)
Figure 11: DF.1267 from batch delivered in 1995 by Sifang is shunting at Thazi station (30th of November 2009)
Figure 12: DF.1200.04 (reconstruction from 2010) pulls a passenger train out of Bago station (3rd of December 2011)
Figure 13: DF.1200.04 entering Abaya station (5th of December 2011)
Class DD.1501 (B'B'-dh)
Alongside the 27 Alsthom class DF.1207, the Burma Railways also purchased 28 diesel-hydraulic locomotives of type B'B'-dh from German manufacturer Krupp (Krupp M1500BB). Initially fitted with Maybach engines, the locomotives DD.1503, DD.1504, DD.1511, DD.1512, DD.1514, DD.1517 – DD1521, DD.1523, DD.1525-DD.1528 got re-powered with MTU 12V396 engines. All those engines alongside DD.1515 were still in service in 2014.
Quantity | Nos. | Put in service | Maker | Makers' Nos. | Makers' Date | Engine | Remark |
28 | 1501 - 1528 | 1964 | Krupp | 4585 - 4612 | 1964 | Maybach MD655 | DD1503/04/11/12/14/17-21/23/25-28 re-powered with MTU 12V396 |
Table 8: List of all class DD.1501 engines.
http://www.eisenbahnhobby.de/burma/DD1500_S.jpg
Figure 14: DD.1519 upon delivery at Krupp workshop Essen (Photo by Krupp, collection Martin Welzel)
Class DC.501 (C-dh)
In 1965 the Burma Railways purchased ten diesel-hydraulic shunting engines of type C-dh with 482hp from Japanese manufacturer Kisha Seizo Kaisha. Initially equipped with MAN engines, some locomotives were later repowered with MTU engines. Locomotives DC.503 and DC.505 were still in service in 2015.
Quantity | Nos. | Put in service | Maker | Makers' Nos. | Makers' Date | Engine | Remark |
10 | 501 - 510 | 1965 | Kisha Seizo Kaisha | 3066 - 3075 | 1964 | MAN 16/18 | some later re-powered with MTU engines |
Table 9: List of all class DC.501 engines.
https://www.facebook.com/groups/951258728409485
Figure 15: DC.505, the last one of its class being in service https://www.facebook.com/groups/951258728409485
Class DD.501 (B'B'-dh)
Alongside the type C-dh shunting engines (class DC.501) the Burma Railways purchased five type B'B'-dh engines with 550hp. As for the class DC.501 locomotives, the MAN engines were later replaced with MTU engines. In 2010, all five engines were still in service, four years later only three of them remained in service.
Quantity | Nos. | Put in service | Maker | Makers' Nos. | Makers' Date | Engine | Remark |
3 | 501 - 503 | 1965 | Hitachi | 12756 - 12758 | 1965 | MAN 16/18 | repowered with MTU 6V396T12 |
2 | 504 - 505 | 1965 | Hitachi | 12802 - 12803 | 1965 | MAN 16/18 | repowered with MTU 6V396T12 |
Table 10: List of all class DD.501 engines.
Figure 16: DD.505 in Pyin Oo Lwin shed (29th of November 2009)
Class DD.901 (B'B'-dh)
In 1969 the Burma Railways purchased six diesel-hydraulic engines of type B'B'-dh with 900hp from German manufacturer Krupp (M800BB). The trial runs of the engines were executed on the metre gauge “Härtsfeldbahn” in the south of Germany where DD.901 derailed upon her first trip from Aalen to Neresheim. This prepared the locomotive well for the service on Burmese tracks which have an even worse condition than those on the “Härtsfeldbahn” (the “Härtsfeldbahn” was closed and dismantled in 1972). DD.901 and DD.903 were still in service in 2014.
Quantity | Nos. | Put in service | Maker | Makers' Nos. | Makers' Date | Engine | Remark |
6 | 901 - 906 | 1969 | Krupp | 4964 - 4969 | 1969 | MTU MA12V362 | |
Table 11: List of all class DD.901 engines.
http://www.eisenbahnhobby.de/burma/DD900_S.jpg
Figure 17: DD.902 on trial runs at Krupp's trial track in Essen (photo by Krupp, collection Martin Welzel)
http://www.eisenbahnhobby.de/burma/Burma3_S.jpg
Figure 18: Preparation of DD.901's trial run on the Härtsfeldbahn at Aalen Güterbahnhof (photo by Krupp, collection Martin Welzel)
http://www.eisenbahnhobby.de/burma/Burma4_S.jpg
Figure 19: Derailment of DD.901 during first trial run between Aalen and Oberkochen (photo by Krupp, collection Martin Welzel)
http://www.eisenbahnhobby.de/burma/Burma6_S.jpg
Figure 20: Derailment of DD.901 (photo by Krupp, collection Martin Welzel)
http://www.eisenbahnhobby.de/haertsfeld69/02-24_Treibrad_Spurspiel_unter_Lok_S.jpg
Figure 21: The reason for the derailment of DD.901 (photo by Heinrich Gerdsmeier, collection Martin Welzel)
http://www.eisenbahnhobby.de/haertsfeld69/02-02_DD901_Strecke_Begutachtung_S.jpg
Figure 22: DD.901's trial run on the Härtsfeldbahn near Zöschlingsweiler (photo by Heinrich Gerdsmeier, collection Martin Welzel)
Figure 23: DD.901 in service at Mandalay station (25th of November 2011)
Class DD.907 (B'B'-dh)
Batches of diesel-hydraulic engines remained small. In 1971 seven engines of type B'B'-dh with 860hp were purchased from Japanese manufacturer Kisha Seizo Kaisha. In 2010 only DD.908 and DD.912 remained in service.
Quantity | Nos. | Put in service | Maker | Makers' Nos. | Makers' Date | Engine | Remark |
7 | 907 - 913 | 1971 | Kisha Seizo Kaisha | 3493 - 3499 | 1971 | MTU MA12V362.TB10 | |
Table 12: List of all class DD.907 engines.
still looking for a picture...
Class DF.1601 (Bo'Bo'Bo'-de)
The diesel-electric locomotives of class DF.1207 proved to be very successful, thus the Burma Railways ordered ten more engines with an increased power of 1,600hp in 1971. Two more batches with 14 and 21 locomotives were delivered in 1974 and 1978. The strong engines were mainly used on the mountain lines from Mandalay to Lashio and Thazi to Shwenyaung. Most of the locomotives were re-motorized: some received a Caterpillar engine with 2,000hp, 13 received a Pielstick engine with 2,000hp and eight got a Chinese ASV190ZL engine. Due to the higher power, the locomotives should have been re-classified as DF.20xx engines, however al engines kept their old numbering and classification. In 2014 40 out of the 45 engines were still in service, only five of the last batch were written off between 2010 and 2014.
Quantity | Nos. | Put in service | Maker | Makers' Nos. | Makers' Date | Engine | Remark |
10 | 1601 - 1610 | 1971 | Alsthom | ? | 1971 | MGO V16ASHR | |
14 | 1611 - 1624 | 1974 | Alsthom | ? | 1974 | MGO V16ASHR | 1617, 1622 reconstructed in 1981 |
21 | 1625 - 1645 | 1978 | Alsthom | ? | 1977 | MGO V16ASHR | |
Table 13: List of all class DF.1601 engines.
Figure 24: DF.1611 from second batch delivered in 1974 (with Pielstick engine) at Aungban station on the line from Thazi to Shwenyaung (1st of December 2009)
Figure 25: DF.1626 from third batch delivered in 1978 near Yangon station (4th of December 2009)
Class DD.914 (Bo‘Bo‘-de)
Only one type of diesel-electric engines with four axles with an overall quantity of 29 were delivered to Burma. The first 16 arrived in Burma in 1972, the remaining 16 followed five years later. Both batches were delivered by Alsthom. They were mainly used on the Yangon circle line and all were in service in 2010. But then all of them except two were replaced by the Chinese DF.1111 class and finally got written off until 2014.
Quantity | Nos. | Put in service | Maker | Makers' Nos. | Makers' Date | Engine | Remark |
16 | 914 - 929 | 1972 | Alsthom | ? | 1972 | MGO V12ASHR | |
13 | 930 - 942 | 1977 | Alsthom | ? | 1977 | MGO V12ASHR | |
Table 14: List of all class D engines.
Figure 26: DD.930 from second batch delivered in 1977 pulls a circle line train out of Yangon station (21st of November 2009)
Figure 27: DF.931 from second batch delivered in 1977 pulls a circle line out of Yangon station (24th of November 2011)
Figure 28: DD.934 from second batch delivered in 1977 pulls a circle line into Yangon station (24th of November 2011)
Figure 29: DD.936 from second batch delivered in 1977 in front of a Circle Line train at Yangon station (24th of November 2011)
Figure 30: DD.936 pulls a Circle Line train near Yangon station (24th of November 2011)
Figure 31: DD.937 from second batch delivered in 1977 at Bago goods station (5th of December 2011)
Figure 32: DD.937 at Bago goods station (5th of December 2011)
Figure 33: DD.940 from second batch delivered in 1977 at Yangon station (4th of December 2009)
Class DD.1201 (B'B'-dh)
One year after having purchased seven diesel-hydraulic locomotives of class DD.907 from Japanese manufacturer Kisha Seizo Kaisha, another ten locomotives with a stronger engine of 1,200hp were purchased. Five engines were re-motorized later with a MTU engine. In 2014 four out of the ten engines remained in service.
Quantity | Nos. | Put in service | Maker | Makers' Nos. | Makers' Date | Engine | Remark |
10 | 1201 - 1210 | 1972 | Kisha Seizo Kaisha | 3500 - 3509 | 1972 | MAN | DD1203, DD1205, DD1207, DD1209, DD1210 later re-motorized with MTU 12V396TC13 |
Table 15: List of all class DD.1201 engines.
Figure 34: DD.1202 at Nyaung U (Bagan) station (February 2009)
Class DD.1529 (B'B'-dh)
Alongside class DD.907 and DD.1201 Kisha Seizo Kaisha also delivered a 1,500hp strong version which got classified as DD.1529. Only six engines were delivered, four of them were re-motorized with a MTU engine in the 1990s. In 2014 three were still in service.
Quantity | Nos. | Put in service | Maker | Makers' Nos. | Makers' Date | Engine | Remark |
6 | 1529 - 1534 | 1972 | Kisha Seizo Kaisha | 3510 - 3515 | 1972 | MAN | DD1529, DD1531, DD1532, DD1534 re-motorized with MTU |
Table 16: List of all class DD.1529 engines.
still looking for a picture...
Class DD.506 (B'B'-dh)
In 1978 the Burma Railways ordered five diesel-hydraulic shunting locomotives with 500hp power from Kawasaki. DD.508 and DD.509 were written off between 2010 and 2014, the other three were still in service in 2014.
Quantity | Nos. | Put in service | Maker | Makers' Nos. | Makers' Date | Engine | Remark |
5 | 506 - 510 | 1978 | Kawasaki | 4056 - 4060 | 1978 | MTU 6V396TC12 | |
Table 17: List of all class DD.506 engines.
still looking for a picture...
Class DD.943 (B'B'-dh)
The six class DD.901 locomotives delivered by Krupp in 1969 proved to be successful and thus another 16 engines were ordered in 1978 (Krupp M1200BB). They had stronger engines with around 1,100hp, but still got classified as DD.943. All 16 were still in service in 2010, in 2014 two out of the 16 were written off.
Quantity | Nos. | Put in service | Maker | Makers' Nos. | Makers' Date | Engine | Remark |
16 | 943 - 958 | 1979 | Krupp | 5449 - 5464 | 1978 | MTU MA 6V396T12 | |
Table 18: List of all class DD.943 engines.
Figure 37: DD.952 near Ywataung (30th of November 2009)
http://www.eisenbahnhobby.de/burma/DD950_S.jpg
Figure 38: DD.953 on Krupp's trial track before delivery to Burma (Photo by Krupp, collection Martin Welzel)
Class DB.301 (B-dh)
In 1986 one (other sources say two) small shunting engines of type B-dh were purchased from South Korean manufacturer Daewoo. In 2014 the engine was still in service at Insein workshop. The unique locomotive became a prototype for four more type B-dh engines which were self-constructed between 1996 and 2011 in Ywataung workshop based on axle-drives from written-off class DD.1501 engines. Other sources mention five self-built engines numbered DIB.303 to DIB.307.
Quantity | Nos. | Put in service | Maker | Makers' Nos. | Makers' Date | Engine | Remark |
1 | 301 | 1986 | Daewoo | ? | 1986 | Cummins | |
1 | 302 | 1996 | Ywataung workshop | | | Hino | |
2 | 303 - 304 | 2007 | Ywataung workshop | | | Hino | |
1 | 305 | 2011 | Ywataung workshop | | | Nissan V10 | |
Table 19: List of all class DB.301 engines.
still looking for a picture...
Class DD.511 (B'B'-dh)
In 1986 another two diesel-hydraulic shunting engines with four axles were delivered by Kawasaki. Further ten engines were delivered in parts and were assembled in Insein workshop. All twelve engines remained in service in 2010, DD.515 was written off until 2014.
Quantity | Nos. | Put in service | Maker | Makers' Nos. | Makers' Date | Engine | Remark |
2 | 511 - 512 | 1986 | Kawasaki | ? | 1986 | MTU 6V396TC12 | 512 re-motorized with 12V128 ZC |
5 | 513 - 517 | 1987 | Kawasaki/ Insein workshop | ? | | MTU 6V396TC12 | |
5 | 518 - 522 | 1989 | Kawasaki/ Insein workshop | ? | | MTU 6V396TC12 | |
Table 20: List of all class DD.511 engines.
Figure 41: DD.512 from first batch delivered by Kawasaki in 1986 at Ma Hlwa Gone goods station (21st of November 2009)
Figure 42: DD.516 (assembled 1987 in Insein workshop) near Mandalay Station (25th of November 2011)
Figure 43: DD.517 (assembled 1987 in Insein workshop) at Yangon station (21st of November 2009)
Figure 44: DD.517 near Insein station (4th December 2009)
Class DD.959 (B'B'-dh)
Class DF.2001 (Bo‘Bo‘Bo‘-de)
The DF.1207 and DF.1601 diesel-electric classes from Alsthom proved to be very successful, however they were too weak for longer trains and the mountain lines to Lashio and Shwenyaung. Thus the Burma Railways ordered 15 more powerful engines with 2,000hp from Alsthom which were delivered in 1987. Further twelve engines (most probably unlicensed copies) were delivered later on by Chinese company Dalian. Further engines with AAR couplers and installations for air brakes followed starting from 1997 (see class DF.2028).
Quantity | Nos. | Put in service | Maker | Makers' Nos. | Makers' Date | Engine | Remark |
15 | 2001 - 2015 | 1987 | Alsthom | ? | 1987 | SEMT Pielstick | |
6 | 2016 - 2021 | 1993 | Dalian | ? | 1993 | Caterpillar 3516DI-TA | CKD-7-B |
6 | 2022 - 2027 | 1994 | Dalian | ? | 1993 | Caterpillar 3516DI-TA | CKD-7-B |
Table 22: List of all class D engines.
Figure 50: DF.2006 from first batch delivered by Alsthom in 1987 between Aungban and Heho station (1st of December 2009)
Figure 51: DF.2022 from third batch delivered by Dalian in 1994 at Aungban station (1st of December 2009)
Class DF.2028 (Bo‘Bo‘Bo‘-de)
Chinese companies Sifang and Dalian continued to deliver copies of DF.2001 class diesel-electric engines. However they were equipped AAR couplers and air brakes installations only. Alongside the locomotives the Burma Railways received passenger coaches from the Chinese metre gauge Yunnan Railway. They were the first to have air brakes, all other passenger coaches till then had not been fitted with brakes! It is not assured that all ordered locomotives had been delivered. Burma Railways were not happy with the quality and some of the locomotives I spotted after less than ten years in use were in a very poor condition.
Quantity | Nos. | Put in service | Maker | Makers' Nos. | Makers' Date | Engine | Remark |
9 | 2028 - 2036 | 1997 | Sifang | ? | 1997 | MTU 16V396TC14 | |
10 | 2037 - 2046 | 1998 | Dalian | ? | 1998 | MTU 16V396TC14 | |
8 | 2047 - 2054 | 2008 | Dalian | ? | 2008 | Caterpillar 3516-B | |
12 | 2055 - 2066 | 2008 | Dalian | ? | 2008 | Caterpillar 3516-B | |
6 | 2067 - 2072 | 2008 | Dalian | ? | 2008 | Caterpillar 3516-B | doubtful whether really delivered |
13 | 2067 - 2079 | 2015 | Dalian | ? | | | numbering unclear |
2 | 0001 - 0002 | 2017 | Dalian | ? | | | numbering unclear, one numbered as 2000 |
Table 23: List of all class D engines.
Figure 52: DF.2042 from second batch delivered by Dalian in 1998 pulls a passenger train out of Yangon station (4th of December 2009)
Figure 53: DF.2045 from second batch delivered by Dalian in 1998 at Insein workshop in February 2009 after only ten years in service
Figure 54: DF.2046 from second batch delivered by Dalian in 1998 pulls a goods train out of Ma Hlwa Gone shunting yard (21st of November 2009)
Figure 55: DF.2051 from third batch delivered by Dalian in 2008 pulls a passenger train near Ma Hlwa Gone station (21st of November 2009)
Figure 56: DF.2052 from third batch delivered by Dalian pulls a train out of Bago station (3rd of December 2011)
Figure 57: DF.2061 from fourth batch delivered by Dalian pulling a passenger train with Chinese passenger coaches into Bago station (3rd of December 2011)
Figure 58: DF.2066 from fourth batch delivered by Dalian in 2008 at Mandalay station (25th of November 2011)
Class DF.1301/YDM-4 (Co'Co'-de)
The large re-gauging program in India (re-gauge metre gauge to broad gauge) set free YDM-4 loco-motives of type Co'Co'-de. A good opportunity for Myanma Railways to purchase nearly new locomotives for a cheap price. However, due to the distribution of six axles among just two bogies and the rather weak engines, the locomotives can only be used on main lines without step gradients and sharp curves. Nevertheless Myanma Railways purchased new YDM-4 engines from Indian manufacturer Diesel Loco Works Varanasi (DLW) and further used YDM-4 engines from Tanzania Railways. The first 21 engines were initially numbered as DF.1268 – DF.1288, later they were renumbered DF.1301 – DF.1321. All further batched were numbered as DF.13xx.
Quantity | Nos. | Put in service | Maker | Makers' Nos. | Makers' Date | Engine | Remark |
10 | 1301 - 1310 | 2000 | DLW | ? | | ALCO 6-251D | ex. Indian Railways; initially numbered DF1268 - 1277 |
11 | 1311 - 1321 | 2006 | DLW | ? | 2006 | ALCO 6-251D | initially numbered DF1278 - 1288 |
5 | 1322 - 1326 | 2007 | DLW | ? | | ALCO 6-251D | ex. Indian Railways |
15 | 1327 - 1341 | 2008 | DLW | ? | | ALCO 6-251D | ex. Indian Railways |
6 | 1342 - 1347 | 2011 | DLW | ? | | ALCO 6-251D | ex. Indian Railways |
13 | 1348 - 1360 | 2011 | DLW | ? | | ALCO 6-251D | ex-TRL (Tanzania) No. 73R01 - 14 or 15 |
6 | 1361 - 1366 | 2017 | DLW | ? | 2017 | | first batch of 18 ordered |
Table 24: List of all class DF.1301/YDM-4 engines.
Figure 59: DF.1313 (ex. Indian Railway) at Nyaunglebin station (4th of December 2011)
Figure 60: DF.1327 (ex. Indian Railways) in a rural station close to Myitkyina (February 2009)
Figure 61: DF.1327 (ex. Indian Railways) pulls a train out of Yangon station (21st of November 2009)
Figure 62: DF.1331 (ex. Indian Railways) pulls a passenger train out of Bago station towards Yangon (February 2009)
Figure 63: DF.1333 (ex. Indian Railways) pulls a train out of Yangon station (4th of December 2009)
Figure 64: DF.1339 (ex. Indian Railways) pulls a train into Bago station (3rd of December 2011)
Figure 65: DF.1342 (ex. Indian Railways) pulls a passenger train out of Mandalay station (25th of November 2011)
Figure 66: DF.1343 (ex. Indian Railways) at Pyuntaza station (4th of December 2011)
Figure 67: DF.1346 (ex. Indian Railways) pulls a passenger train out of Bago station (3rd of December 2011)
Figure 68: DF.1317 (ex. Indian Railways) near Payagyi station (5th of December 2011)
Class D2D.2201/JR DD 51 (B'2'B'-dh)
Between 2003 and 2008 Myanma Railways had received six used cape gauge diesel locomotives from Japan Railways of exotic type B'2'B'-dh and 2,900hp power (JR class DD 51) most probably as part of development funds. As the locomotives require a re-gauging and as they are too large and powerful for proper use on Myanmar railway lines, Myanma Railways didn’t really know what to do with the engines. The status of the first two locomotives delivered is unknown, two others were cut into halves (see class DD.1101) and the latter two are awaiting re-powering after conversion to metre gauge in Insein workshop.
Quantity | Nos. | Put in service | Maker | Makers' Nos. | Makers' Date | Engine | Remark |
1 | 2201 | 2003 | Hitachi | ? | 1972 | Daihatsu DML 61Z | ex JR DD 51 797 (JR Freight) |
1 | 2202 | 2005 | Hitachi | ? | 1970 | Daihatsu DML 61Z | ex JR DD 51 823 (JR Freight) |
1 | | 2005 | Mitsubishi | ? | 1974 | Daihatsu DML 61Z | ex JR DD 51 1070 (JR Freight); cut into two parts (DD.1101 and DD.1102) |
1 | | 2005 | Mitsubishi | ? | 1972 | Daihatsu DML 61Z | ex JR DD 51 1001 (JR Freight); cut into two parts (DD.1103 and DD.1104) |
1 | 2027 | 2008 | Mitsubishi | ? | 1972 | Daihatsu DML 61Z | ex JR DD 51 1006 (JR Hokkaido) numbered DF.2027 |
1 | 2012 | 2008 | Mitsubishi | ? | 1974 | Daihatsu DML 61Z | ex JR DD 51 1068 (JR Hokkaido) numbered DF.2012 |
Table 25: List of all class D2D.2201/JR DD 51 engines.
http://www.2427junction.com/69x-j5122.jpg

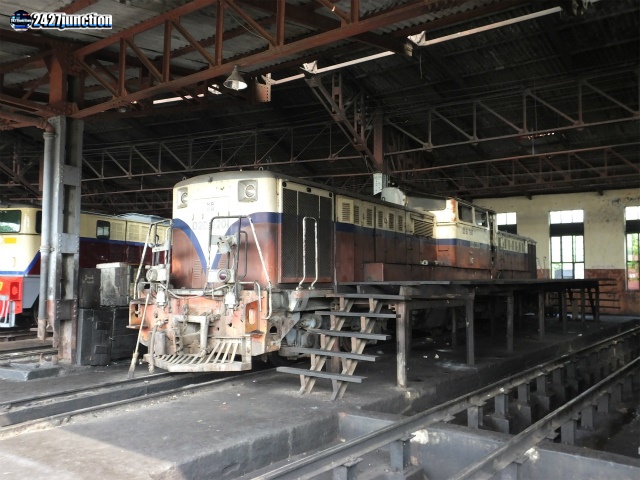

Figure 69: D2D.2201 (ex. JR DD 51 797) at Ma Hlwa Gone depot
http://www.2427junction.com/69x-j5102.jpg

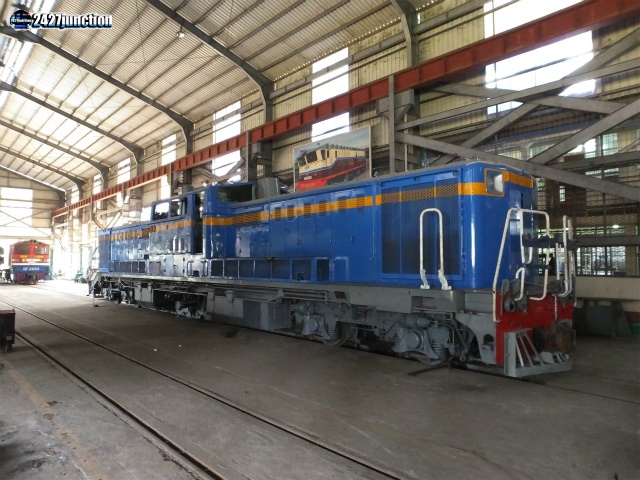

Figure 70: ex. JR DD 51 1006 at Insein workshop
http://www.2427junction.com/69x-j5115.jpg

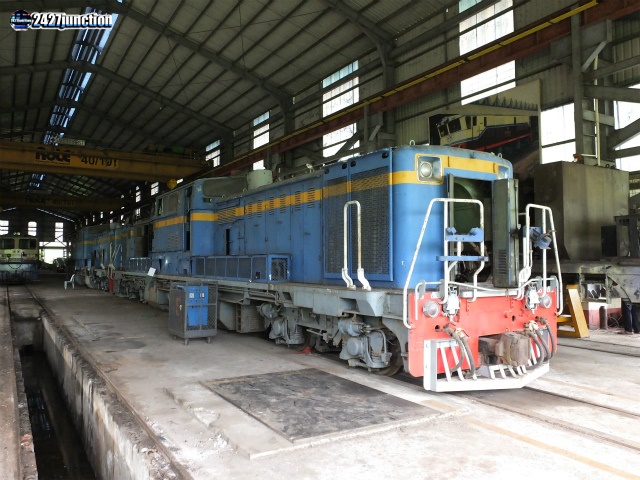

Figure 71: ex. JR DD 51 1068 at Insein workshop
Class DD.1101 (B'2'-dh )
Two of the class D2D.2201 (JR DD 51) were cut into halves and converted into two engines of type B'2'-dh which were classified as DD.1101. Most probably only two of them were in running condition and both of them have already been taken out of service. The other two have most probably been scrapped.
Quantity | Nos. | Put in service | Maker | Makers' Nos. | Makers' Date | Engine | Remark |
1 | 1101 | 2007 | Myanma Railways | | | | cut from JR DD 51 1070; scrapped in May 2015 |
1 | 1102 | 2007 | Myanma Railways | | | | cut from JR DD 51 1070; out of service |
1 | 1103 | 2007 | Myanma Railways | | | | cut from JR DD 51 1001; out of service |
1 | 1104 | 2007 | Myanma Railways | | | | cut from JR DD 51 1001; status unknown |
Table 26: List of all class DD.1101 engines.
http://www.2427junction.com/69x-j5134.jpg
Figure 72: DD.1101 stored out of service at Ywataung workshop
http://www.2427junction.com/69x-j5135.jpg
Figure 73: DD.1101 stored out of service at Ywataung workshop
Class DD.1111 (B'B'-dh)
Traffic on the only Chinese metre gauge railway line from Kunming to Hekou (former French Yunnan Railway) ceased more and more in the 21st century as passenger service had been suspended after landslides and construction of a parallel normal gauge line. China Railways used diesel locomotives of type B'B'-dh which were classified as DFH 21 (DFH = “Dong fang hong” meaning “The east is red”). Big parts of the more than 30 years old engines were sold to Myanmar alongside with passenger coaches. The engines were classified as DD.1111 and mainly replaced the Alsthom DD.914 on the Yangon Circle line.
Quantity | Nos. | Put in service | Maker | Makers' Nos. | Makers' Date | Engine | Remark |
5 | 1111 - 1115 | 2009 | Sifang | ? | 1977 | | ex CR DFH21 (Kunming - Hekou) |
30 | 1116 - 1145 | 2010 | Sifang | ? | 1977 | | ex CR DFH21 (Kunming - Hekou) |
Table 27: List of all class DD.1111 engines.
Figure 74: DD.1115 pulls a train into Yangon station (24th of November 2011)
Figure 75: DD.115 at Yangon station (24th of November 2011)
Class DB.210/FCB (B-dh)
It seems that three locomotives of type B-dh classified as DB.210 were in service. I don’t have any details, they were most probably purchased in Japan. Two of them were spotted in 2011, now renumbered as FCB-1 and FCB-2.
Quantity | Nos. | Put in service | Maker | Makers' Nos. | Makers' Date | Engine | Remark |
1 | 210 | | | | | | |
1 | 211 | | | | | | later numbered FCB-1 |
1 | 212 | | | | | | later numbered FCB-2 |
Table 28: List of all class DB.210 engines.
still looking for some pictures...
Class DD.970 (?)
Some sources record seven engines of class DD.970 without giving any further details. Maybe they have been placeholders for an order which was never delivered.
